Accessories 3rd Party Accessories Unwinder, Rewinder, and Matrix Remover for Epson C7500 series

Unwinder, Rewinder, and Matrix Remover for Epson C7500 series

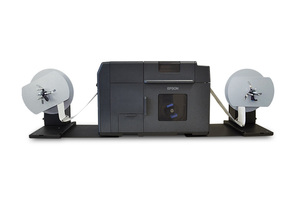

The Roll to Roll system specifically designed for the Epson C7500 series color label printers can handle rolls up to 5” (127mm) media wide and having an outside diameter up to 10” (250mm). Units are equipped with a 3” fixed core holder or an adjustable core holder 1.57" (40mm) - 4.64" (118mm).

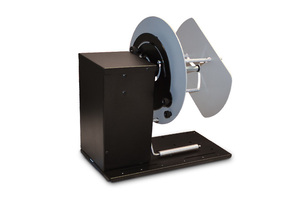

The automatic label unwinder (ASS1111-S0) increases the input roll capacity. The label rewinder (ASD1111-S0) can rewind labels facing in or facing out.

The printer plates (EPS75PL-UW, EPS75PL-RW) are recommended to guarantee an aligned media path. The printer will be locked over the printer plates.

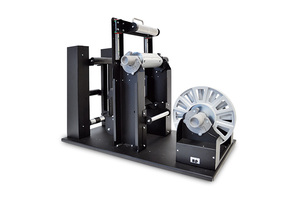

Designed as an in-line option, the matrix remover (EPS75-MTX27) is an all-in-one system capable of removing the excess label material around each pre die-cut label, and rewinding. By printing on die-cut label rolls with the matrix intact, you can be assured that your labels are completely printed, edge-to-edge.

An external power supply 100/240VAC - 2.5A at 24V allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation’s speed and rotation’s direction.

Contact Information:
D.P.R. Labeling LLC
Address: 14013 NW 8th Street, Sunrise, FL 33325-6267
Phone: 954.533.3409
Email: info@dpr-llc.com
Website: www.dpr-llc.com

  • Specifically designed for the Epson C7500 series printers
  • Increases input roll capacity to support higher production volume
  • Rewinds roll of printed labels facing in or out
  • Automatically adjusts rotation and speed to match with printer
  • Optional in-line matrix remover

General:


General:
  • External power supply 100/240VAC - 2.5A at 24V
  • Maximum roll diameter: 25cm (10”)
  • Maximum media width: 127mm (5”)
  • Adjustable core holder 1.57" (40mm) - 4.64" (118mm)
