Epson Stylus Pro 7900 Computer to Plate

Selected FAQ

Q:
How do I put in my plate size, bend and gripper edge?
A:

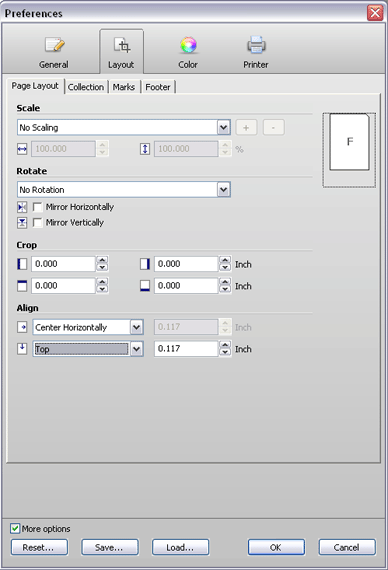

Setting up the plate configuration should be done initially and saved as a preset. This will save time. From the EFI RIP, select the “Actions” tab and “Preferences”. On the “layout” tab you will see the ability to scale and rotate. Make sure that the “More options” Check box at the bottom of the preferences window is selected and you see the following:



Under the Align Heading you see options for horizontal alignment and a Vertical Alignment. Recommendations are as follows:

  • For the Horizontal alignment, select “Center Horizontally”.


  • For the Vertical alignment, select “top”.


  • For the offset (gripper and plate bend), enter the offset in the numeric field to the right. For example: if your plate bend, punch and gripper edge is .6 inches, then you would enter 0.6 inch the numeric field. The RIP then offsets each job 0.6 inch from the top leaving space for the Punch, Plate bend and gripper edge.
Published: September 30, 2011
