Epson StylusRIP Professional 2.0 for the Epson Stylus Photo 2200

Selected FAQ

Q:
How can I use my Epson StylusRIP Professional 2.0 software with my Stylus Photo 2200 to print over a Windows Network with a Windows XP or Windows 2000 server?
A:

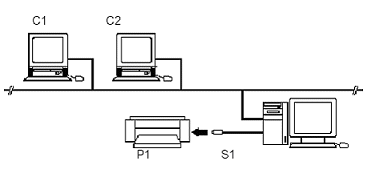

The Epson StylusRIP Professional 2.0 software can work as a network print server by having the printer shared over the network. Follow the illustration and procedure below.


  • Connect the Stylus Photo 2200 (P1) to the Server Host computer (S1) via a USB or FireWire cable.
  • Install the PS Server software to the Server Host computer (S1).
  • Install the PS Printer driver and PPD to each Client Host computer (C1, C2).


  • Note:
    The Server and Client systems must be in the same workgroup and segment to print over the network.
Setting Up the PS Server
  1. Connect your printer to the Server Host computer via a USB or FireWire cable with the power on.
  2. Insert the Epson Stylus Photo 2200 software CD into the CD drive and install the Epson Standard Windows Driver.
  3. Remove the printer software CD and insert the Epson StylusRIP Professional CD into the CD drive to install the PS Server.
  4. When you see the language selection screen, select English, then click OK.
  5. Install the Server software, then click Next to continue.
  6. Click Next to install the Epson PS Server.
  7. Choose the Destination Location and click Next.
  8. Select your printer model from the list of printers, then click Next to continue the PS Server installation.
  9. Click Finish to complete the installation.
  10. When prompted, click Finish.


  11. The Add Printer Wizard appears when the installation of the PS Server is complete.

    Note:
    If the Add Printer Wizard is not displayed, double-click the Add Printer icon in the Printers & Faxes window, then click Next.

  12. Select Local printer attached to this computer, then click Next. (Do not enable Automatically detect and install my Plug and Play printer.)
  13. Select EPSON PS Port as your local port setting, then click Next.
  14. The server on which the Stylus Photo 2200 printer resides does not have the correct printer driver installed. When the screen asking you to select the printer type is displayed, click Have Disk... and specify the path to the INF file containing installation information. If your CD-ROM drive letter is D, the path will be D:\english\win2000-XP\ps_setup\epps2k.inf (change the drive letter as needed for your system). Then click OK.
  15. Select your printer model and install it according to the on-screen instructions.
  16. At the Print a Test Page dialog box, select NO, then click Finish. The driver file will be copied to complete the installation.
Note:
Steps 16 and 17 involve configuring Network components and should only be completed by your Windows Network Administrator.
  1. Enable Windows File and Print Sharing via the Network Connections control panel on the Server Host computer.
  2. Under the Control Panel menu, double-click Network Connections. Then, in your Local Area Connection Properties, install the File and Print Sharing for Microsoft Networks network service.
If the printer sharing was not selected during the initial StylusRIP driver installation, follow the procedure below.
  1. From the Printers folder, select the StylusRIP Professional printer driver that you would like to share.
  2. Then right-click the printer and click Sharing in the menu that appears. You see the Printer Properties dialog box.
  3. On the Sharing tab, check Share this printer and enter the name of the printer you want to share. Then click Apply.
Note:
To install a printer driver for a different version of Windows, click Additional Drivers. The client computer can then select the shared StylusRIP printer as a network printer and the printer will be installed automatically.
    Once you’ve enabled sharing on the print server, each of the client computers need to connect to it. Follow the procedure in the section Setting Up the Client System on Windows below.
Setting Up the Client System on Windows
  1. Insert the StylusRIP software CD and install the Client Software. The PS Driver and PS Manager will be installed.
  2. When you see the Add Printer Wizard on the screen, click Next.
  3. Select A network printer, or a printer attached to another computer to select the printer you want to use, then click Next.
  4. Enter the printer’s network path in the Network path or Queue name field. The network printer may also be selected by clicking Browse.
  5. At the end of the installation, click Finish.
If you experience printing problems using StylusRIP over the network, please check the following:

  • The Stylus Photo 2200 must be connected via a USB or FireWire cable only. Optional network interface cards are not supported.
  • The Server and Client systems must be in the same workgroup and segment to print over the network.
  • If a router is used on the network and the job sent from the Client host computer does not print to the printer, remove the router from the network and temporarily install an Ethernet hub. This will avoid any firewall communication problems that may be caused by the router. Reinstall the PS Printer driver and PPD to each Client Host computer. After setup is complete, you can return the router connection back to its network configuration.
